Large round can square cans big oil barrel beer barrel automatic can body welding machine

Short Description:

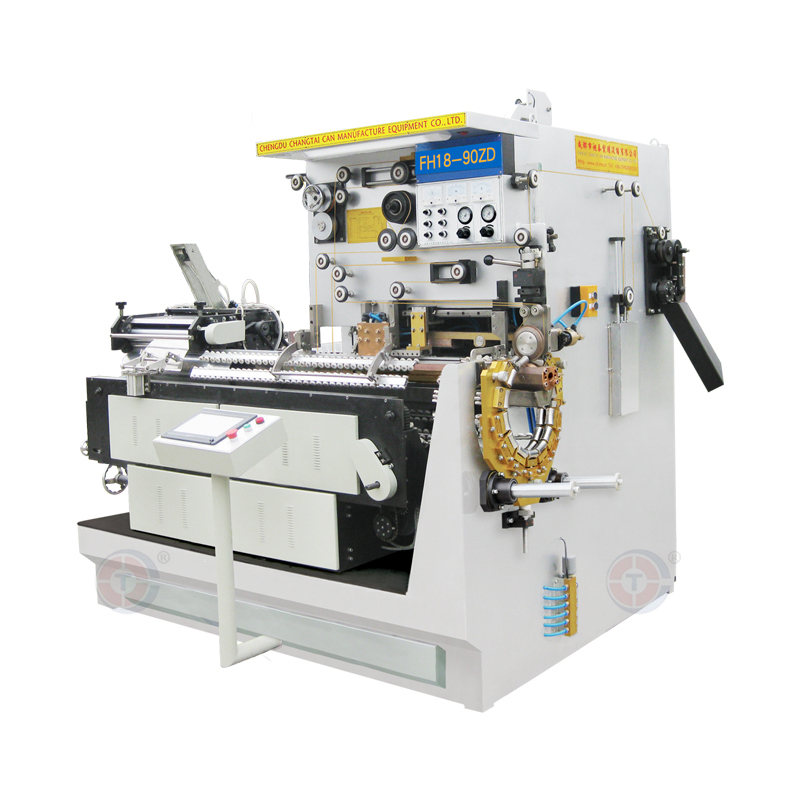

The FH18-90ZD 30, a welder for metal container making, it is usually used in making of  a paint tin can /bucket /pail/ barrel /drum.

Applied for (2.5-5 Gallon or 9.5 L-20 L)metal container making industry, food or chemical tin can making industry,the diameter range is φ220-300mm(8.6-11.8 inches).


Product Detail

Product Tags

Our Can Body Welding Machines are suitable for welding various materials such as tin plate, iron plate, chrome plate, galvanized plate and stainless steel.



Apply to the welding of various can,such as food cans,chemical cans and square cans.



Our rolling machine is designed with three processes to complete the rolling, so that when the hardness and thickness of the material are different, the phenomenon of different sizes of the rolling is avoided. At the same time, rapid and continuous production can be realized.

Technical Parameters

Model FH18-90ZD-30
Welding Speed 6-15m/min
Production Capacity 15-30cans/min
Can diameter Range 220-330mm
Can Height Range 250-450mm
Material Tinplate/steel-based/chrome plate
Tinplate Thickness Range 0.25-0.42mm
Z-bar Overlap Range 0.8mm 1.0mm 1.2mm
Nugget Distance 0.5-0.8mm
Frequency Range 100-260Hz
Seam Point Distance 1.5mm   1.7mm
Cooling Water Temperature 12-18℃ Pressure:0.4-0.5MpaDischarge:12L/min
Compressed Air Consumption 400L/min
Pressure 0.5Mpa-0.7Mpa
Power Supply 380V±5% 50Hz
Total Power 63KVA
Machine Measurements 2300*1800*2000
Weight 2500kg

Changtai is a can making machine factory in Chengdu City China. We build and install complete production lines for three piece cans.Including Automatic Slitter,Welder,Coating,Curing,Combination system.The machines are used in industries of food packaging,Chemical packaging, Medical packaging, etc.
